Descrizione

Descrizione-W129022465-EET

Intel B860 Chipset, 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

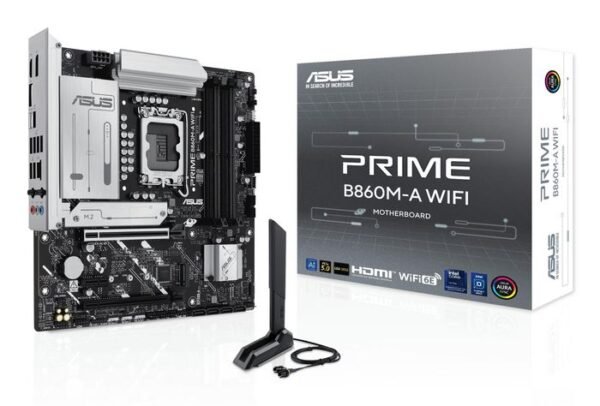

B860M-A WIFI
Le schede madri ASUS della serie PRIME sono progettate con competenza per sfruttare appieno il potenziale dei più recenti processori Intel® Core™ Ultra (Serie 2). Dotata di un design di alimentazione robusto, soluzioni di raffreddamento complete e opzioni di ottimizzazione intelligenti, la scheda madre PRIME B860M-A WIFI offre agli utenti e agli assemblatori di PC fai da te una gamma di ottimizzazioni delle prestazioni tramite funzionalità software e firmware intuitive. È progettata per essere compatibile con PC con intelligenza artificiale avanzata, offrendo la potenza e la connettività necessarie per le applicazioni di intelligenza artificiale più esigenti.

Specifiche per 90MB1JY0-M0EAY0

BIOS

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Expansion slots

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

Number of M.2 (M) slots

2

PCI Express x1 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Features

Audio output channels

7.1 canali

Component for

PC

Motherboard chipset

Intel B860

Motherboard chipset family

Intel

Motherboard form factor

micro ATX

Windows operating systems supported

Windows 10 x64/Windows 11

Graphics

Parallel processing technology support

Not supported

Internal I/O

12V power connector

Yes

ATX Power connector (24-pin)

Yes

Chassis intrusion connector

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

3

Number of COM connectors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

S/PDIF out connector

Yes

Thunderbolt headers

1

TPM connector

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Legal Information

ADR Information

No restrictions

Country of Origin

Japan

Tariff No.

8473302000

UNSPSC Code

43201513

Memory

ECC сompatibility

Non-ECC

Maximum internal memory

256 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Unbuffered memory

Yes

Network

Bluetooth

Yes

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Package dimensions

Depth (package,cm)

27,5 cm

Gross Weight (Package, kg)

1,3 kg

Height (package,cm)

6,75 cm

Width (package,cm)

27,5 cm

Packaging content

Antenna included

Yes

Cables included

SATA

Screws included

Yes

Processor

Compatible processor series

Intel Core Ultra (Series 2)

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Product dimensions

Net Weight (Product, kg)

1 kg

Product Depth

24,4 cm

Product Width

24,4 cm

Rear panel I/O ports

DisplayPorts quantity

2

DVI-D ports quantity

0

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2×2 Type-C ports quantity

1

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

1

Storage controllers

Number of HDDs supported

4

Number of storage drives supported

6

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2/SATA III

Supported storage drive types

HDD & SSD

Brand Name

Asus

Warranty

1 Anno(i)

Informazioni aggiuntive
Peso 1 kg
