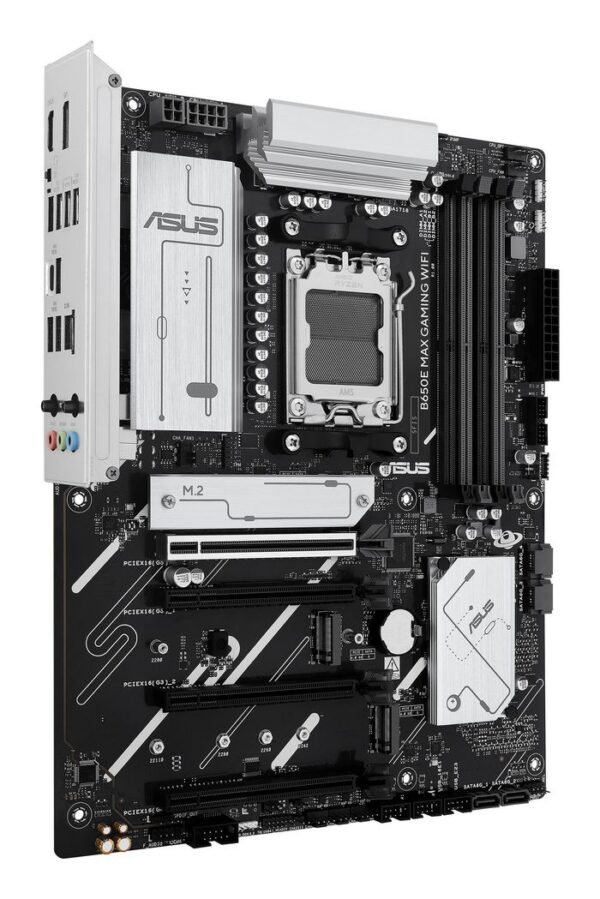

Asus B650E MAX GAMING WIFI – Scheda Madre ATX Socket AM5 con supporto DDR5 fino a 8000+ MT/s, PCIe 5.0, 3x M.2, Wi-Fi 6E, LAN 2.5Gb, Aura Sync RGB e DisplayPort/HDMI

Aggiungi al Compare Aggiungi alla Wishlist

Asus B650E MAX GAMING WIFI – Scheda Madre ATX Socket AM5 con supporto DDR5 fino a 8000+ MT/s, PCIe 5.0, 3x M.2, Wi-Fi 6E, LAN 2.5Gb, Aura Sync RGB e DisplayPort/HDMI

Name: Asus B650E MAX GAMING WIFI – Scheda Madre ATX Socket AM5 con supporto DDR5 fino a 8000+ MT/s, PCIe 5.0, 3x M.2, Wi-Fi 6E, LAN 2.5Gb, Aura Sync RGB e DisplayPort/HDMI
Brand: Asus
SKU: 6602
Availability: InStock

in AM5

209,00 €

Disponibile

Aggiungi al Compare Aggiungi alla Wishlist

Compare

Descrizione

DESCRIZIONE-W129160089-EET

Le schede madri ASUS della serie B650E sono progettate con competenza per liberare tutto il potenziale dei processori AMD Ryzen serie 9000, 8000 e 7000. Dotata di un design di alimentazione robusto, soluzioni di raffreddamento complete e opzioni di ottimizzazione intelligenti, B650E MAX GAMING WIFI offre agli utenti e agli assemblatori di PC fai da te una gamma di ottimizzazioni delle prestazioni tramite funzionalità software e firmware intuitive. Questa piattaforma offre la potenza e la connett…

Leggi la descrizione completa

Socket AMD AM5: pronto per il socket AMD AM5 per i processori desktop AMD Ryzen™ serie 9000, 8000 e 7000
Connettività ultraveloce: Wi-Fi 6E, slot PCIe 5.0 x16, slot PCIe 5.0 M.2, Realtek 2.5Gb Ethernet, porte posteriori USB 10Gbps Type-A e Type-C® e supporto anteriore USB 5Gbps Type-C®
Raffreddamento completo: dissipatori di calore VRM e M.2, dissipatore di calore PCH, connettori per ventole ibride e Fan Xpert 2+
Design fai da te: schermo I/O pre-montato, BIOS FlashBack™, Q-Antenna, Q-LED Core
Personalizzazione senza pari: tre connettori RGB Gen 2 indirizzabili, tutti configurabili con l’illuminazione RGB Aura Sync esclusiva di ASUS
Pronto per CEC Tier II

Specifiche per 90MB1LD0-M0EAY0

BIOS

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Expansion slots

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

Number of M.2 (M) slots

3

PCI Express x16 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Features

Audio output channels

7.1 canali

Component for

PC

Cooling type

Passive

Motherboard chipset

AMD B650

Motherboard chipset family

AMD

Motherboard form factor

ATX

Power source type

ATX

Product colour

Black

Windows operating systems supported

Windows 10 x64/Windows 11

Graphics

On-board graphics card

No

Parallel processing technology support

Not supported

Internal I/O

ATX Power connector (24-pin)

Yes

Chassis intrusion connector

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

4

Number of COM connectors

1

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

Number of SATA connectors

0

Number of SATA II connectors

0

Number of SATA III connectors

4

Number of water pump connectors

1

Peripheral (Molex) power connectors (4-pin)

1

RGB LED pin header

Yes

S/PDIF out connector

Yes

Thunderbolt headers

1

TPM connector

Yes

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Legal Information

ADR Information

No restrictions

Country of Origin

Japan

Tariff No.

8473302000

UNSPSC Code

43201513

Memory

ECC сompatibility

Non-ECC

Maximum internal memory

256 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Number of memory slots

4

Supported memory clock speed (max)

8000 MHz

Supported memory types

DDR5-SDRAM

Unbuffered memory

Yes

Network

Bluetooth

Yes

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Other features

mSATA ports quantity

0

Weight

1050 g

Package dimensions

Gross Weight (Package, kg)

1,3 kg

Packaging content

Antenna included

Yes

Cables included

SATA

Screws included

Yes

Processor

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Product dimensions

Net Weight (Product, kg)

1 kg

Rear panel I/O ports

DisplayPort version

1.4

DisplayPorts quantity

1

DVI-D ports quantity

0

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Line-in

Yes

Microphone in

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

Storage controllers

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2/PCI Express 5.0/SATA III

Supported storage drive types

HDD & SSD

Brand Name

Asus

Warranty

1 Anno(i)
