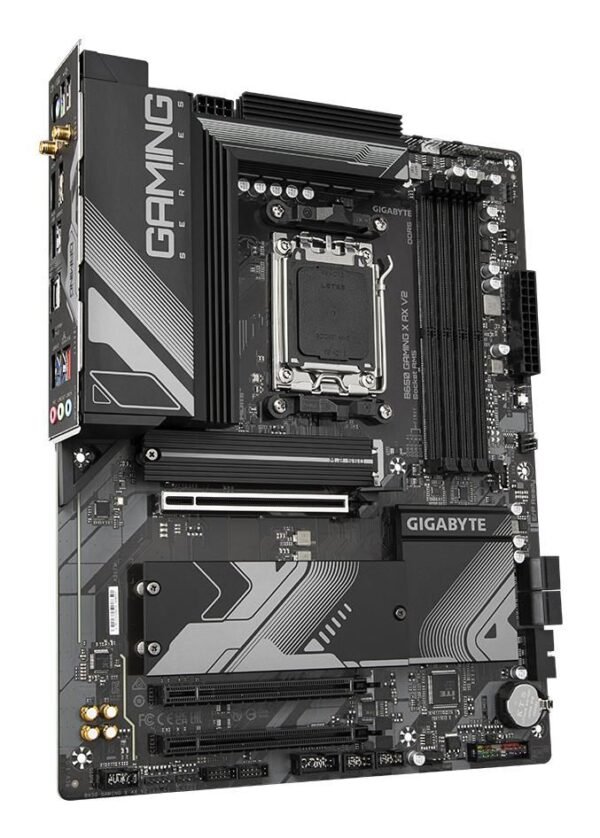

Gigabyte B650 GAMING X AX V2 – Scheda madre AMD Ryzen 9000 con DDR5 fino a 8000MHz, PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN, doppio M.2, USB 3.2 Gen 2 e VRM 8+2+2 per prestazioni da gaming estreme

Aggiungi al Compare Aggiungi alla Wishlist

Gigabyte B650 GAMING X AX V2 – Scheda madre AMD Ryzen 9000 con DDR5 fino a 8000MHz, PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN, doppio M.2, USB 3.2 Gen 2 e VRM 8+2+2 per prestazioni da gaming estreme

Name: Gigabyte B650 GAMING X AX V2 – Scheda madre AMD Ryzen 9000 con DDR5 fino a 8000MHz, PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN, doppio M.2, USB 3.2 Gen 2 e VRM 8+2+2 per prestazioni da gaming estreme
Brand: GIGABITE
SKU: 6586
Availability: InStock

in AM5

207,00 €

Disponibile

Aggiungi al Compare Aggiungi alla Wishlist

Compare

Descrizione

DESCRIZIONE-W128827454-EET

Prestazioni durevoli
Le schede madri GIGABYTE Ultra Durable™, realizzate con componenti ottimali in ogni dettaglio, offrono prestazioni eccellenti e una piattaforma senza tempo.

Socket AMD AM5: supporta i processori AMD Ryzen™ serie 7000/ Ryzen™ 8000
Prestazioni senza pari: soluzione VRM digitale diretta a 8+2+2 fasi
DDR5 a doppio canale: 4*SMD DIMM con supporto per moduli di memoria AMD EXPO™ e Intel® XMP
Archiviazione SuperSpeed: 1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 Connettori M.2
Design termico avanzato e protezione termica M.2: per garantire la stabilità dell’alimentazione VRM e le prestazioni dell’SSD M.2 25110
EZ-Latch: slot PCIe x16 con design a sgancio rapido
Reti veloci: LAN 2.5GbE e Wi-Fi 6E 802.11ax
Connettività estesa: DP, HDMI, USB-C® posteriore 10 Gb/s, USB-C® anteriore 20 Gb/s
Smart Fan 6: dotato di sensori di temperatura multipli, connettori ventola ibridi con FAN STOP
Q-Flash Plus: aggiorna il BIOS senza installare CPU, memoria e scheda grafica

Specifiche per B650 GAMING X AX V2

Battery

Battery weight

3 g

Lithium Weight (g)

0,064 g

Number of battery cells

1

BIOS

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS button

Yes

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Expansion slots

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

25110

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

25110

Number of M.2 (M) slots

3

PCI Express x16 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 slots

3

Features

Audio chip

Realtek ALC897

Audio output channels

7.1 canali

Component for

PC

Cooling type

Active

Motherboard chipset

AMD B650

Motherboard chipset family

AMD

Motherboard form factor

ATX

PC health monitoring

Fan/Temperature/Voltage/Water cooling

Power source type

ATX

Product colour

Brown

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Graphics

DirectX version

12.0

Discrete graphics support

Yes

HDCP

Yes

Maximum resolution

4096 x 2160 Pixel

Parallel processing technology support

Not supported

Internal I/O

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

3

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

5

Number of SATA III connectors

4

Number of water pump connectors

2

RGB LED pin header

Yes

Serial port headers

1

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2×2 connectors

1

Legal Information

ADR Information

UN3091 – Lithium METAL (inside equiment)

Country of Origin

China

Tariff No.

8473302000

UNSPSC Code

43201513

Logistics data

Products per shipping (inner) case

1 pz

Memory

ECC сompatibility

Non-ECC

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Non-ECC

Yes

Number of memory slots

4

Supported memory clock speed (max)

8000 MHz

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz

Supported memory module capacities

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

Supported memory types

DDR5-SDRAM

Unbuffered memory

Yes

Network

Bluetooth

Yes

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

LAN controller

Realtek RTL8125

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

WLAN controller model

Realtek RTL8852CE

Package dimensions

Depth (package,cm)

27 cm

Gross Weight (Package, kg)

1,3 kg

Height (package,cm)

8 cm

Width (package,cm)

33,5 cm

Packaging content

Antenna included

Yes

Batteries included

Yes

Bundled software

LAN bandwidth management software/Norton Internet Security (OEM version)

Cables included

SATA

Screws included

Yes

Processor

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Maximum internal memory supported by processor

192 GB

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Product dimensions

Net Weight (Product, kg)

1 kg

Product Depth

24,4 cm

Product Height

3,5 cm

Product Width

30,5 cm

Rear panel I/O ports

DisplayPort version

1.4

DisplayPorts quantity

1

DVI-D ports quantity

0

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Line-in

Yes

Microphone in

Yes

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB connector type

USB Type-A/USB Type-C

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

Storage controllers

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2/SATA III

Supported storage drive types

HDD & SSD

Technical details

Warranty period

3 anno/i

Brand Name

Gigabyte

Warranty

1 Anno(i)
