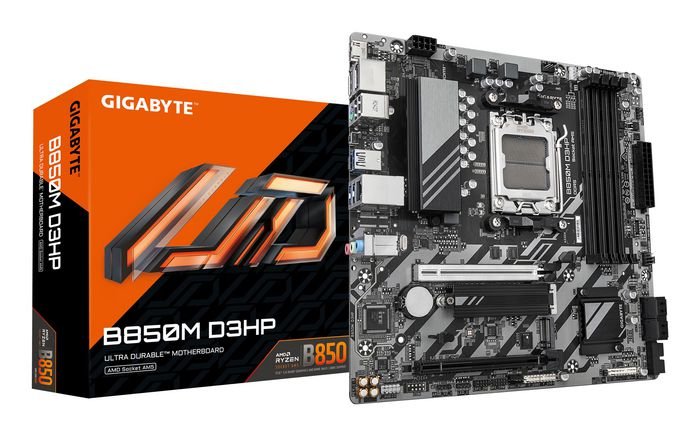

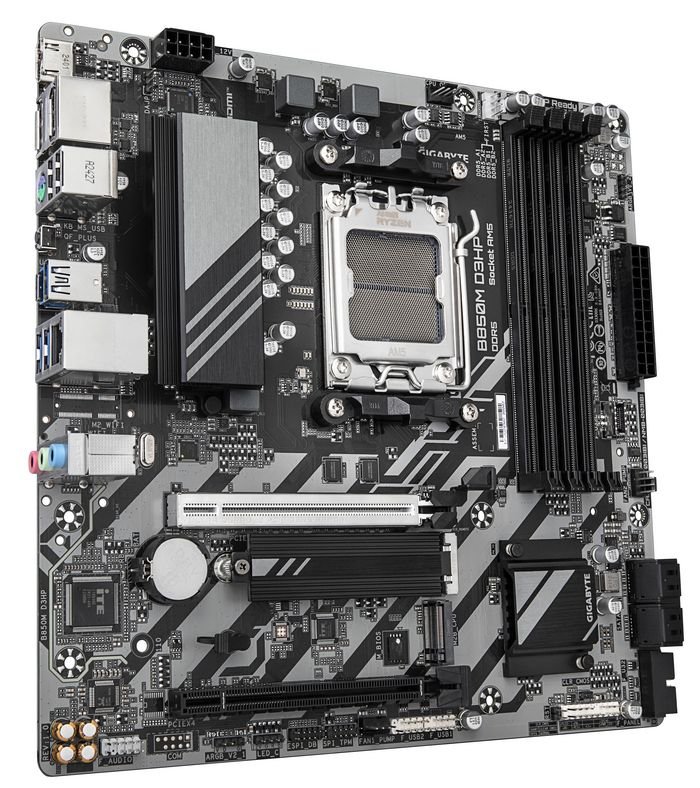

B850M D3HP Motherboard – AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
Migliora la tua esperienza di elaborazione con le rinomate serie di schede madri GIGABYTE: AORUS, AERO e GIGABYTE. Caratterizzate da design innovativi e funzionalità avanzate, queste schede offrono prestazioni e affidabilità eccezionali. Che tu sia un gamer, un content creator o un professionista, le nostre serie soddisfano le tue esigenze, garantendo una qualità senza compromessi e soluzioni all’avanguardia.
Specifiche per B850M D3HP
Battery
Battery weight
3 g
Number of battery cells
1
BIOS
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Expansion slots
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Features
Audio chip
Realtek ALC897
Audio output channels
7.1 canali
Component for
PC
Motherboard chipset
AMD B850
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
PC health monitoring
Fan/Temperature/Voltage/Water cooling
Power source type
ATX
Product colour
Brown
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Graphics
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 Pixel
Parallel processing technology support
Not supported
Internal I/O
12V power connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of chassis fan connectors
3
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Peripheral (Molex) power connectors (4-pin)
1
RGB LED pin header
Yes
Serial port headers
1
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Legal Information
ADR Information
No restrictions
Country of Origin
China
Tariff No.
8473302000
UNSPSC Code
43201513
Logistics data
Products per shipping (inner) case
1 pz
Memory
ECC сompatibility
Non-ECC
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Wi-Fi
No
Other features
Weight
1300 g
Package dimensions
Gross Weight (Package, kg)
1,3 kg
Packaging content
Antenna included
Yes
Batteries included
Yes
Bundled software
LAN bandwidth management software/Norton Internet Security (OEM version)
Screws included
Yes
Processor
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
24,4 cm
Product Height
3,5 cm
Product Width
24,4 cm

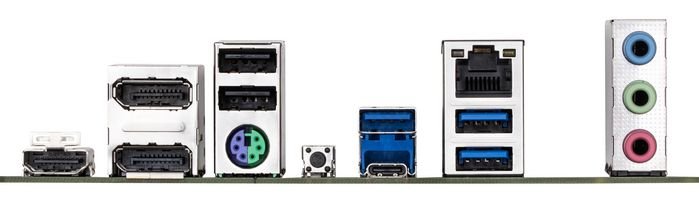

Rear panel I/O ports
DisplayPort version
2.1
DisplayPorts quantity
1
DVI-D ports quantity
0
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
WiFi-AP antenna jack
2
Storage controllers
Number of HDDs supported
4
Number of storage drives supported
6
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2/SATA III
Supported storage drive types
HDD & SSD
Technical details
Warranty period
3 anno/i
Brand Name
Gigabyte
Warranty
1 Anno(i
