PC ASUS 15LT MINI TWR D501MERES-514500004X BLK I5-14500 16DDR5 512SSD W11PRO 1YOS ODD RJ45 HDMI VGA 8USB T+M 1XCOM TP FINO:30/05

GENERALI
Part No: 90PF05K1-M007D0
Sales Model Name: D501MERES-514500004X
EAN Code: 4711387815908
UPC Code: 197105815902

ASPETTO
Size: 15L
Color: Black
Form Factor: Mini tower

SISTEMA OPERATIVO E SOFTWARE
Operating System: Windows 11 Pro
Office: 1-month trial for new Microsoft 365 customers. Credit card required.

PROCESSORE E GRAFICA
Processor: Intel® Core™ i5-14500 Processor 2.6GHz (24M Cache, up to 5.0GHz, 14 cores)
Chipset: Intel® B760 Chipset

MEMORIA E ARCHIVIAZIONE
DIMM Memory: 16GB DDR5 U-DIMM
Memory Speed: Memory speed is 5600MHz, but run at 4000~4400MHz.
Memory Max.: 64GB
Storage: 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
Optical Drive: DVD writer 8X
Drive Bay:
– 2.5″ x 1
– 3.5″ x 1
Serial ATA: 4 x SATA 6.0Gb/s ports
Expansion Slot (includes used):
– 1x PCIe® 4.0 x 16
– 2x PCIe® 3.0 x 1
– 1x M.2 2280 connector for storage
– 1x M.2 2280/2230 connector for storage
– 1x M.2 connector for WiFi
– 2x DDR5 U-DIMM slot

CONNESSIONI E MULTIMEDIA
LAN: Intel WGI219V 10/100/1000 Mbps, non-vPro
Audio: High Definition 7.1 Channel Audio
Power Supply: 330W power supply (80+ Platinum, peak 660W)
Keyboard & Mouse:
– Wired keyboard (USB)
– Wired optical mouse (USB)

PORTE I/O

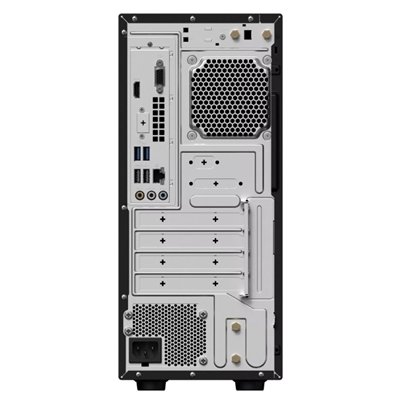

Rear I/O Port:
– 1x RJ45 Gigabit Ethernet
– 1x HDMI 1.4
– 1x VGA Port
– 1x 7.1 channel audio (3 ports)
– 1x Kensington lock
– 1x Padlock loop
– 2x USB 2.0 Type-A
– 2x USB 3.2 Gen 1 Type-A
Front I/O Port:
– 1x Headphone
– 1x 3.5mm combo audio jack
– 2x USB 2.0 Type-A
– 2x USB 3.2 Gen 2 Type-A

DIMENSIONI E PESO
Dimension (WxDxH): 15.5 x 29.6 x 34.7 cm
Weight: 6 kg

ALTRO
Accessory: 1 x COM port
My ASUS features:
– System diagnosis
– Fan profile
– AppDeals
Built-in Apps:
– MyASUS
– ASUS Business Manager
Security:
– HDD User Password Protection and Security
– Kensington Security Slot™(7x 3mm)
– McAfee LiveSafe™ 30-day trial
– Padlock loop
– Trusted Platform Module (Firmware TPM)
Antivirus: McAfee® 30 days free trial
TPM: Trusted Platform Module (TPM) 2.0
Ecolabels & Compliances:
– EPEAT Gold
– Energy star 9.0
– REACH
– RoHS
