Asus ROG CROSSHAIR X870E EXTREME AMD AM5 (Ryzen 9000, E-ATX, 3x PCIe 5.0, 2x PCIe 4.0, DDR 5, WiFi 7, AI Overclocking, PCIe Q-Release, Aura Sync) 1.243,00
Description

Descrizione-W129160087-EET

ROG CROSSHAIR X870E EXTREME AMD AM5 (Ryzen 9000, E-ATX, 3x PCIe 5.0, 2x PCIe 4.0, DDR 5, WiFi 7, AI Overclocking, PCIe Q-Release, Aura Sync)

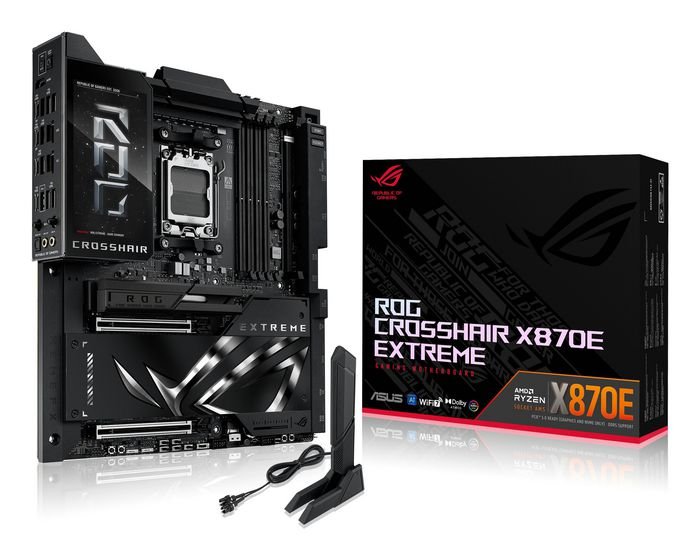

ROG Crosshair X870E Extreme
ROG Crosshair X870E Extreme è la scheda madre di punta della serie AMD Ryzen™ 9000, progettata per gli utenti più esigenti. Fornisce la base definitiva per CPU AM5, memoria DDR5 e componenti PCIe® 5.0 per garantire massime prestazioni e la massima prontezza per il futuro. La sua connettività completa include USB4® e il display LCD integrato da 5 pollici offre un modo unico per monitorare le prestazioni del sistema o aggiungere un tocco di stile personalizzato.

ASUS AI CACHE BOOST
Potenzia i tuoi flussi di lavoro LLM (Large Language Model) con AI Cache Boost. Esclusiva delle schede madri ASUS AMD serie 800 e 600 che utilizzano CPU AMD Ryzen™ 9000 Granite Ridge, questa funzionalità del BIOS migliora in modo intelligente l’efficienza della cache, offrendo prestazioni fino al 12,75% più veloci per le tue attività LLM.

Specifiche per 90MB1LB0-M0EAY0

BIOS

BIOS memory size

512 Mbit

BIOS type

UEFI AMI

Expansion slots

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

5.0

3rd M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

22110

5th M.2 highest PCI Express generation

4.0

5th M.2 largest key size

22110

Number of M.2 (M) slots

5

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

2

Features

Audio chip

Realtek ALC4082

Audio output channels

7.1 canali

Component for

PC

Motherboard chipset

AMD X870E

Motherboard chipset family

AMD

Motherboard form factor

Extended ATX

Windows operating systems supported

Windows 11

Graphics

Parallel processing technology support

Not supported

Internal I/O

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

Number of SATA III connectors

4

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 2×2 connectors

1

Legal Information

ADR Information

No restrictions

Country of Origin

Japan

Tariff No.

8473302000

UNSPSC Code

43201513

Memory

ECC сompatibility

ECC & Non-ECC

Maximum internal memory

256 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Unbuffered memory

Yes

Network

Bluetooth

Yes

Bluetooth version

5.4

Ethernet interface type

10 Gigabit Ethernet/5 Gigabit Ethernet

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Package dimensions

Gross Weight (Package, kg)

1,3 kg

Packaging content

Antenna included

Yes

Cables included

SATA

Drivers included

Yes

Processor

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Product dimensions

Net Weight (Product, kg)

1 kg

Rear panel I/O ports

DVI-D ports quantity

0

Ethernet LAN (RJ-45) ports

2

HDMI ports quantity

1

PS/2 ports quantity

1

S/PDIF out port

Yes

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

8

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB4 Gen 3×2 ports quantity

2

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

1

Storage controllers

Number of storage drives supported

10

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2/SATA III/SlimSAS

Supported storage drive types

HDD & SSD

Vendor information

Brand Name

Asus

Warranty

1 Anno(i)

Additional Information
Weight 1 kg
